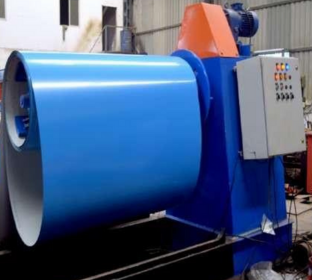

Hydraulic Decoiler

Technical Specification :

Decoiler is provided to load raw material coil on its arm stand hold the coil and also in loop area store the raw material before in process. It will collapse & expand arms (jaws) to hold lighten sheet coil and unwinding for forming line smoothly.


Main Shaft Material En9 Dia. 240 mm
Expand & collapse system Hydraulic system
Loop system With loop sensor.
Mandrel rotation Spherical Roller Bearing SKF 22240/22244
width of coil can be loaded 1220 mm
Min. width 500 mm
Mandrel face length 1350 mm
Drum nominal Dia 500
Drum Expansion range mm 425 to 525
Max . weight of coil can be loaded capacity 10 MT Capacity
Support Stand Attached
Motor 5 HP
Main Shaft Material En-8
Electrical Panel Attached with D-coiler
